SPECIFICATIONS

• Material: Aluminum alloy

• Power Adapter Output :  24V/3A

• Plug : US / EU / UK / AU

• Voltage : 110V-240V (Compatible) 50/60Hz

• Offline Connect :  Wifi 2.4G / USB / Mobile(Iphone/Android) / Ipad / Windows

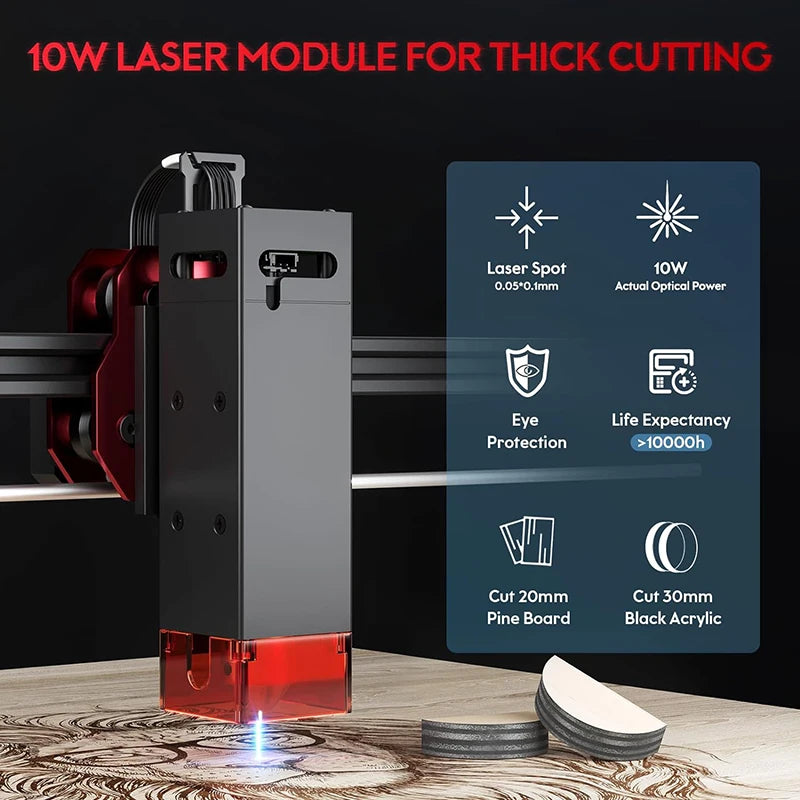

• Optical power: 10W

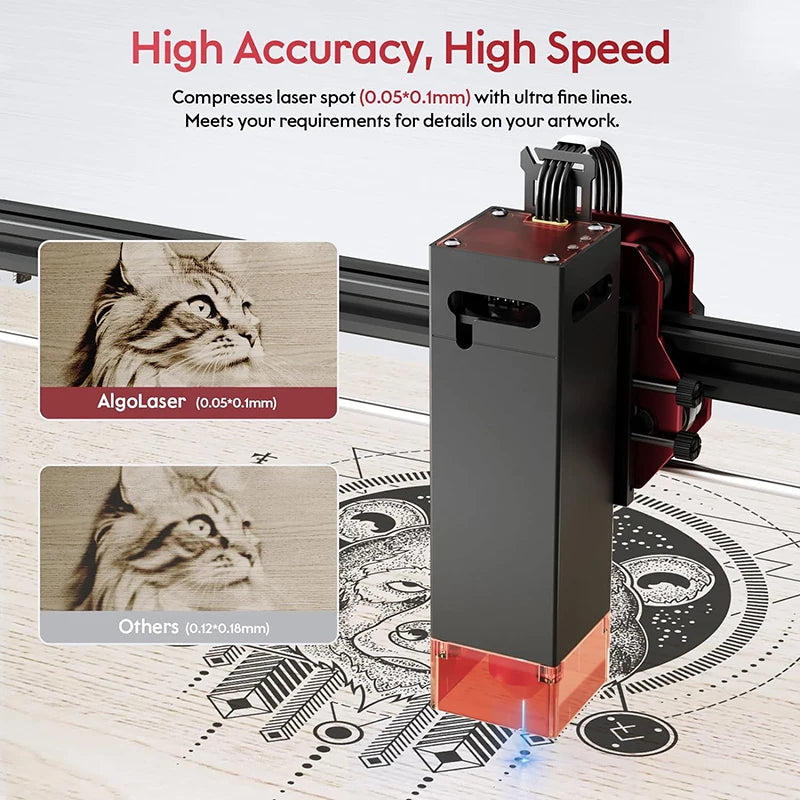

• Spot Size: 0.05*0.0mm

• Wavelength : 445±5nm

• Focus：50mm

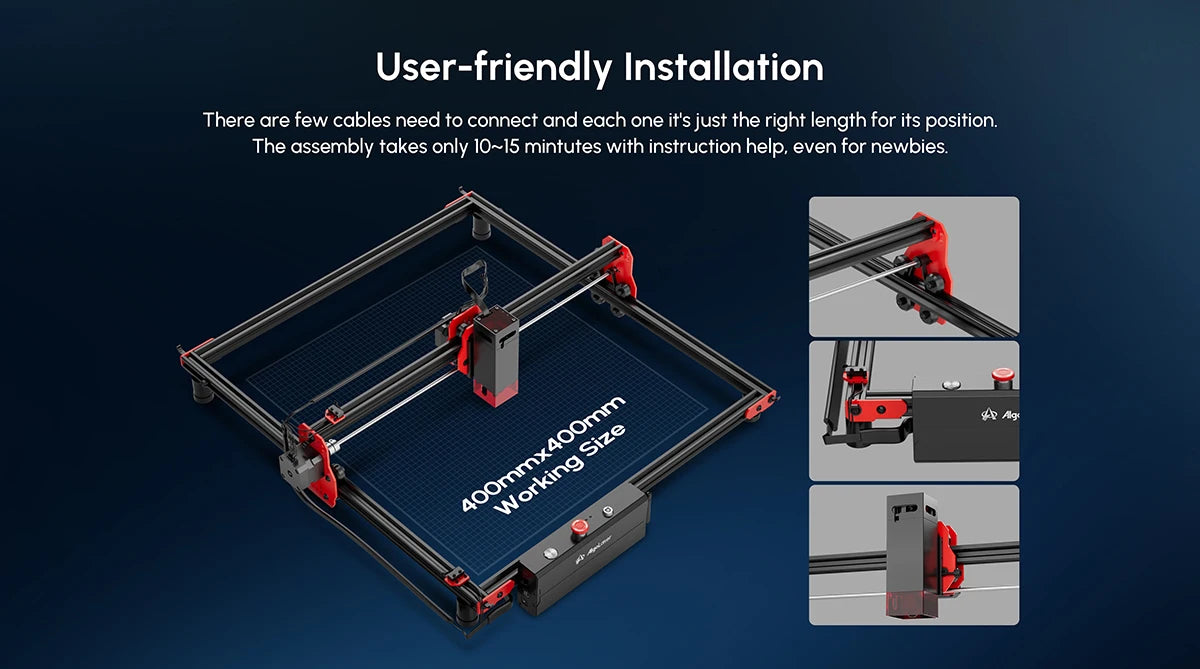

• Engraving Area:  400*400mm

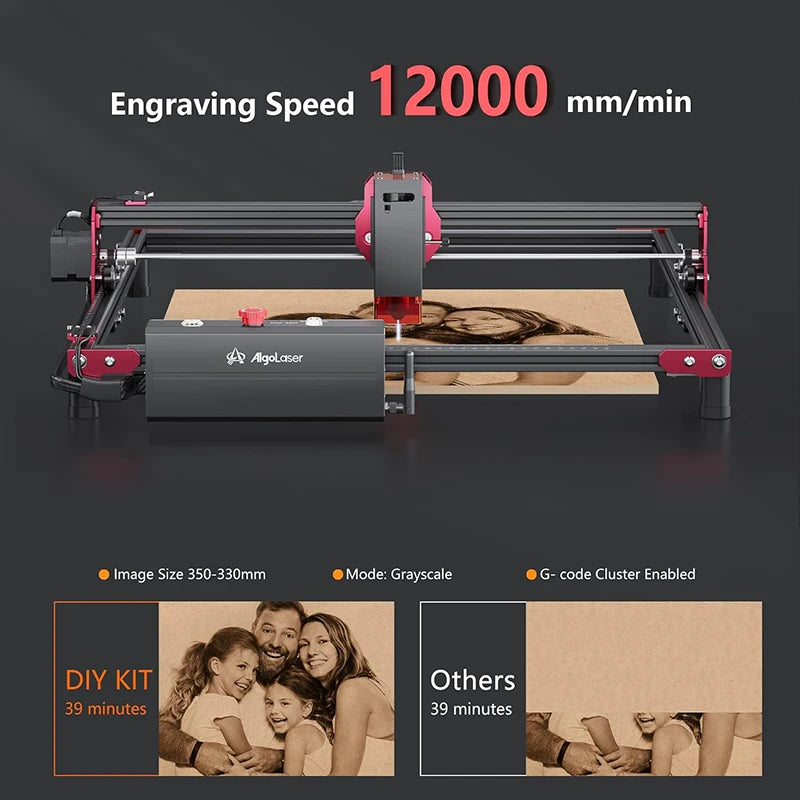

• Engraving Speed:  12000mm/min

• Engraving Material:  Wood/MDF/Stainless steel (coloured engraving) / Metal (except pure metal) / Acrylic in various colors / Clear acrylic / Glass / Stone / Leather / Foam / Cloth / Denim / Leaf / Paper / Book / Rubber / Ceramics / Stamps / Carton/Bamboo/Steel plate etc.

• Cutting Material:  Wood Board, Paperboard, Acrylic, Leather, Felt Cloth, Dark Color Plastic Sheet (Melt), etc.

• Operating Software :

  ① LaserGRBL supports Windows XP, 7, 8, 10,11

  ② LightBurn supports Windows XP, 7, 8, 10,11, Mac OS, Linux

• Input Format：jpg, svg, png, bmp, G code, CAD, AI,CDR, dwg, etc

• Warranty : 1 Year

• Engineer email: support@algolaser.com

Function:

➤Latest Laser Beam Shaping Technology :

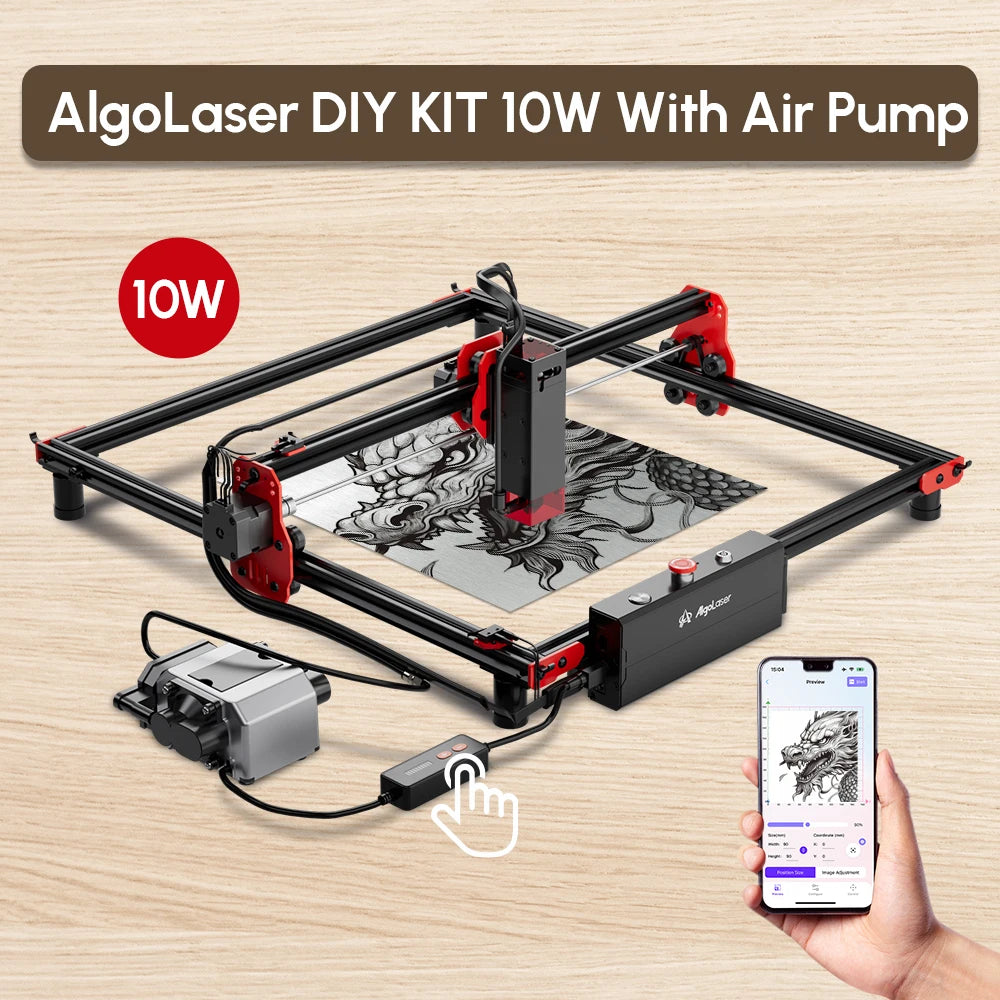

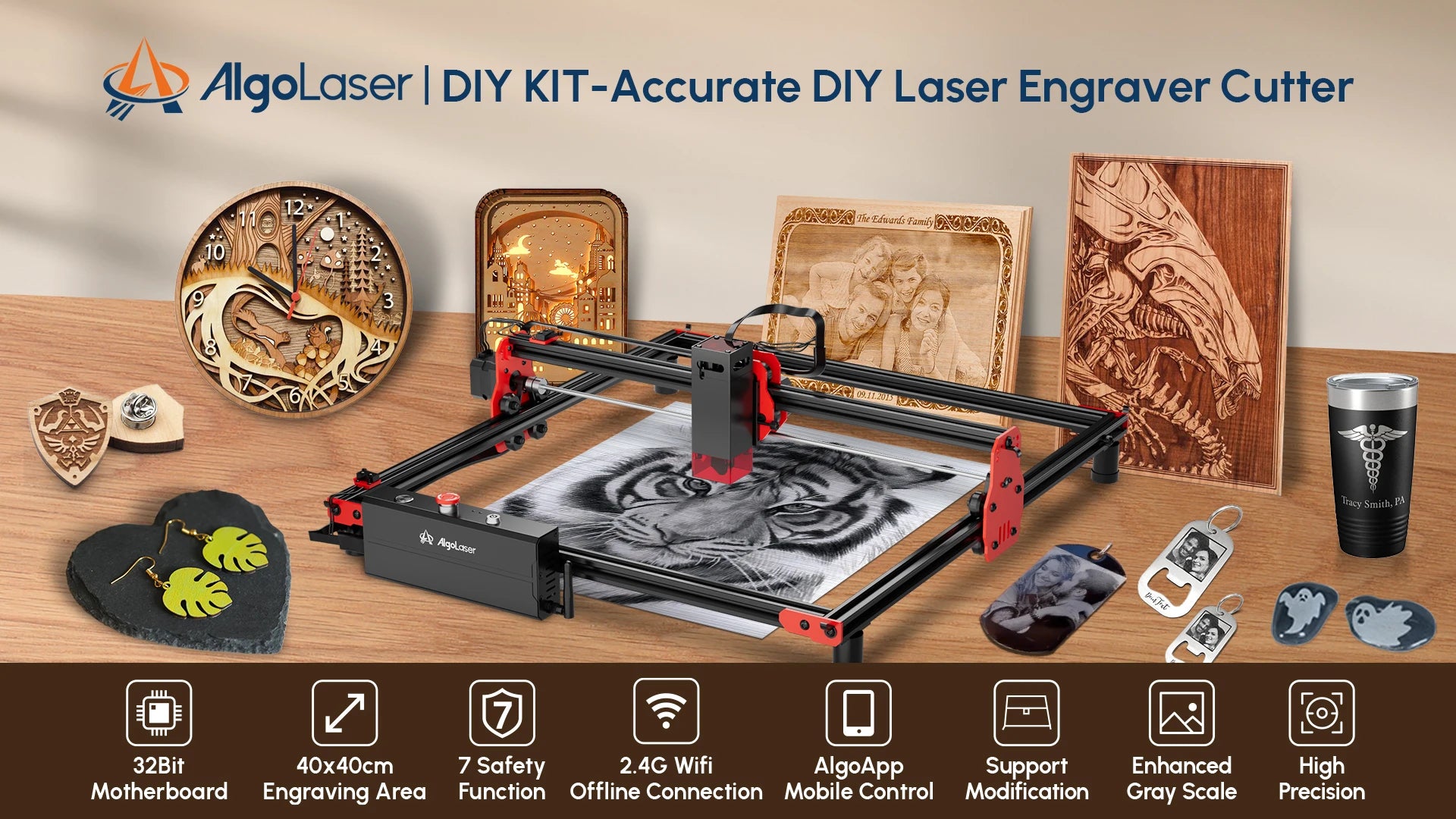

Algolaser DIY Kit uses the latest 5.5W laser beam shaping technology diode laser, it has an ultra-fine 0.08mm sharp laser focus, with super cutting penetration and precision, can cut up to 8mm thick wood, 5mm acrylic, carve ceramics and stainless steel.

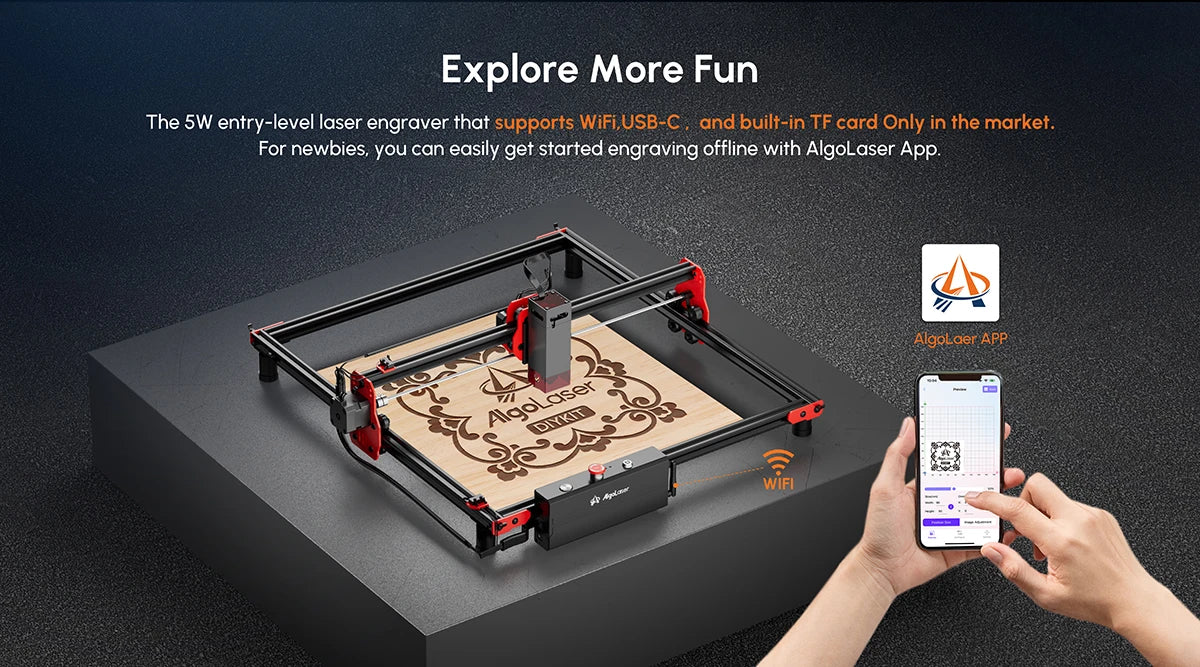

➤Offline Control :

Support mobile APP control, wifi connection, USB connection, offline USE，The machine is compatible with various mature engraving software, such as LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, supports PWM mode engraving, supports Windows Mac system, and engraving file format Support JPG, PNG, DXF, SVG, G-code, NC, BMP, etc.

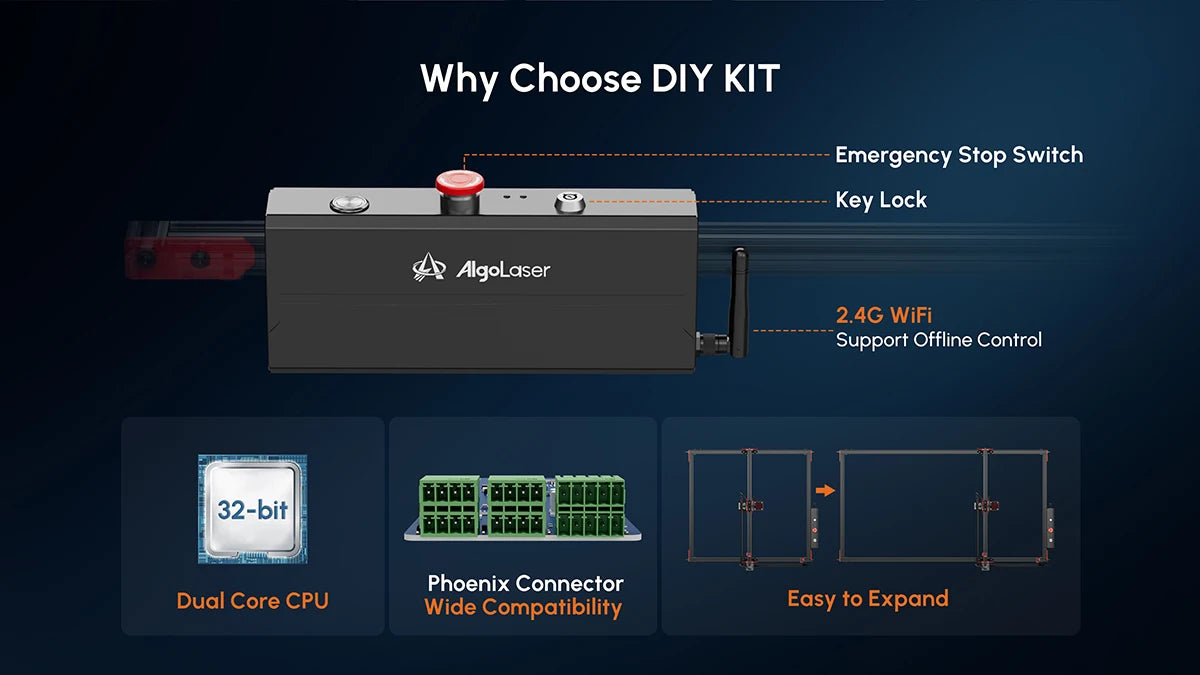

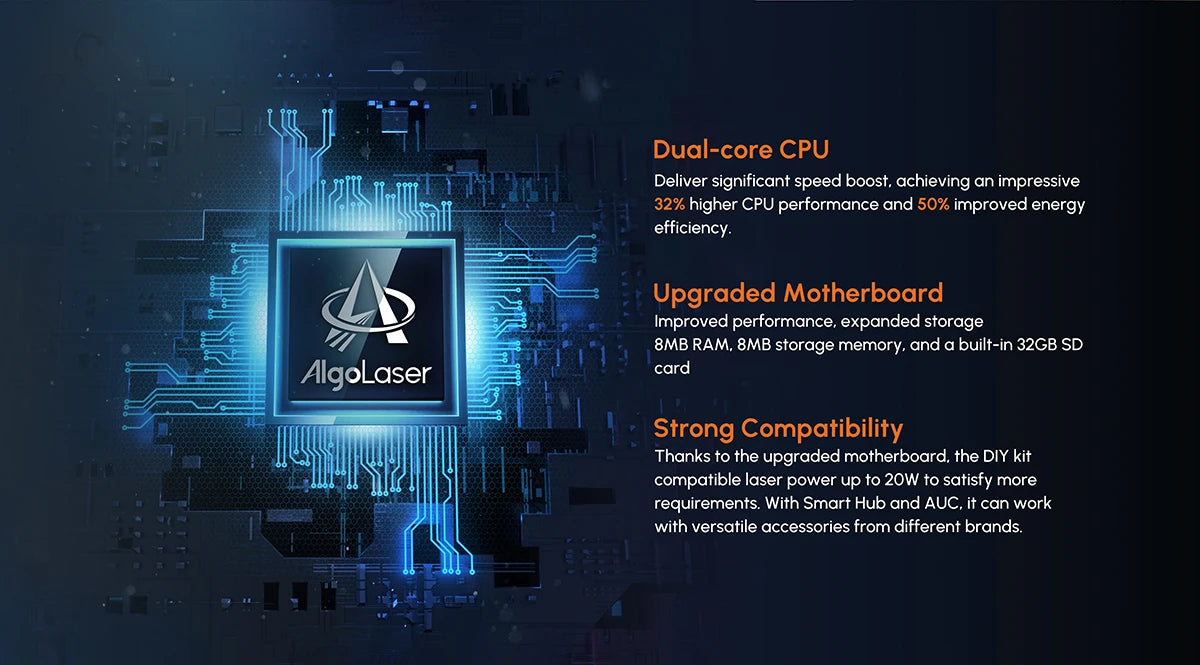

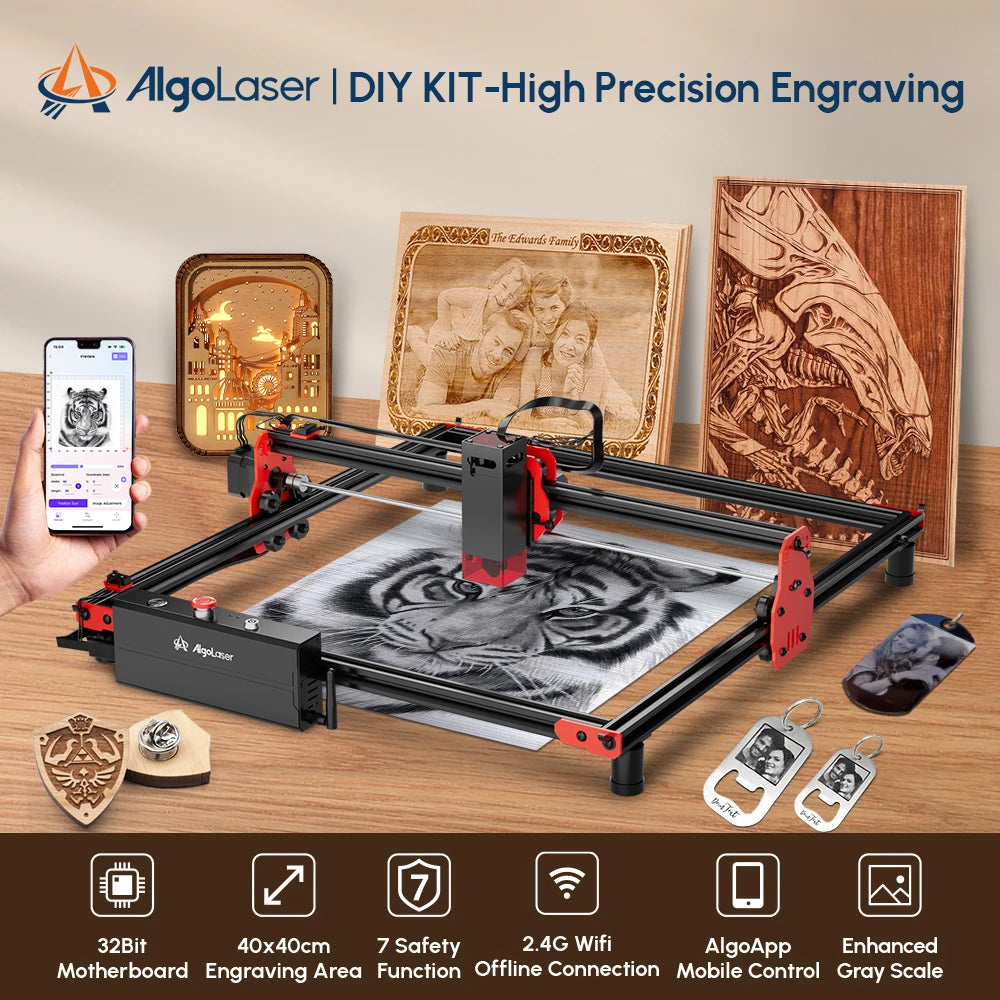

➤Upgraded 32-bit Motherboard/Dual-core CPU:

Deliver significant speed boost, achieving an impressive 32% higher CPU performance and 50% improved energy efficiency.8MB RAM, 8MB storage memory, and a built-in 32GB SD card

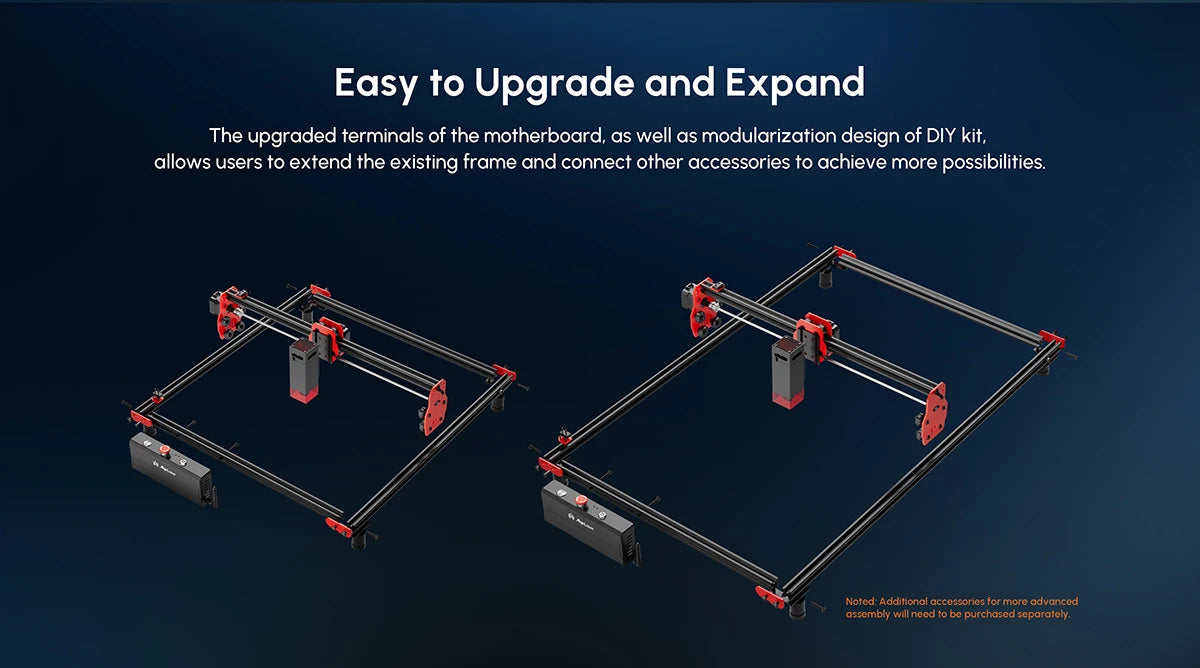

➤Easy to Upgrade and Expand:

The upgraded terminals of the motherboard, as well as modularization design of DIY kit, allows users to extend the existing frame and connect other accessories to achieve more possibilities.

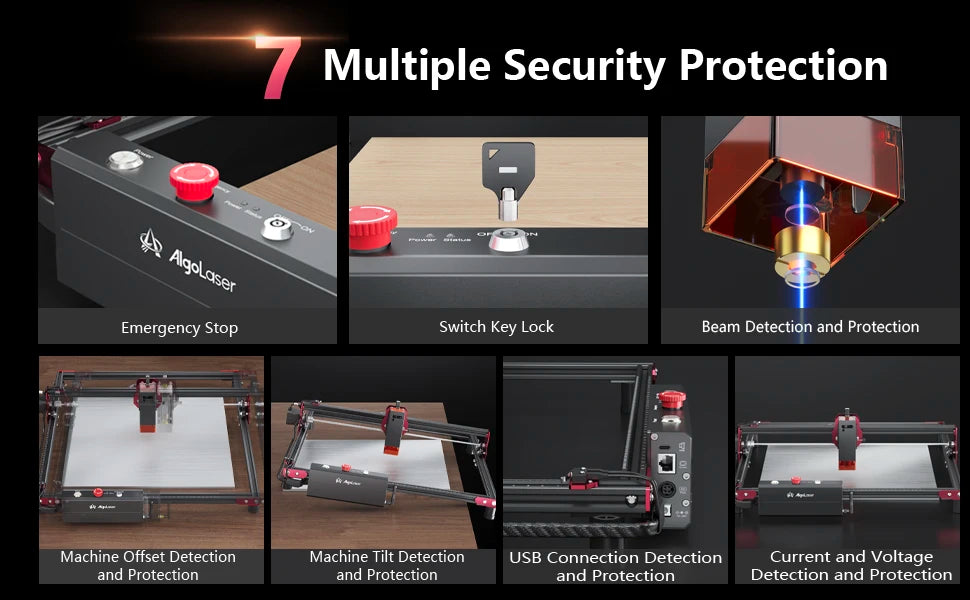

➤7 Safety Function+12 Months Warranty
